10kHz MEMS EVALUATION KIT
The DM005220 is the industry’s first MEMS-based laser projection evaluation kit, supporting an all-in-one digital controller for laser scanner and video. The laser projection evaluation kit utilizes an automotive designed MAR1110.X MEMS scanning mirror, compact RGB laser module and electrical interfaces.
The DM5220 laser projection evaluation kit revolutionizes MEMS and video control, to be a single chip solution, designed specifically for the demand of the automotive market. That being said, all interfaces are aligned to state-of-the-art automotive requirements, including CAN communication and FPD-Link III data protocol. The DM5220 all-digital controller produces unprecedented operational stability despite temperature changes and MEMS manufacturing tolerances.
The DM5220 is provisioned with a full Light Engine comprised of MAR1110.E, RGB lasers, and integral optics.

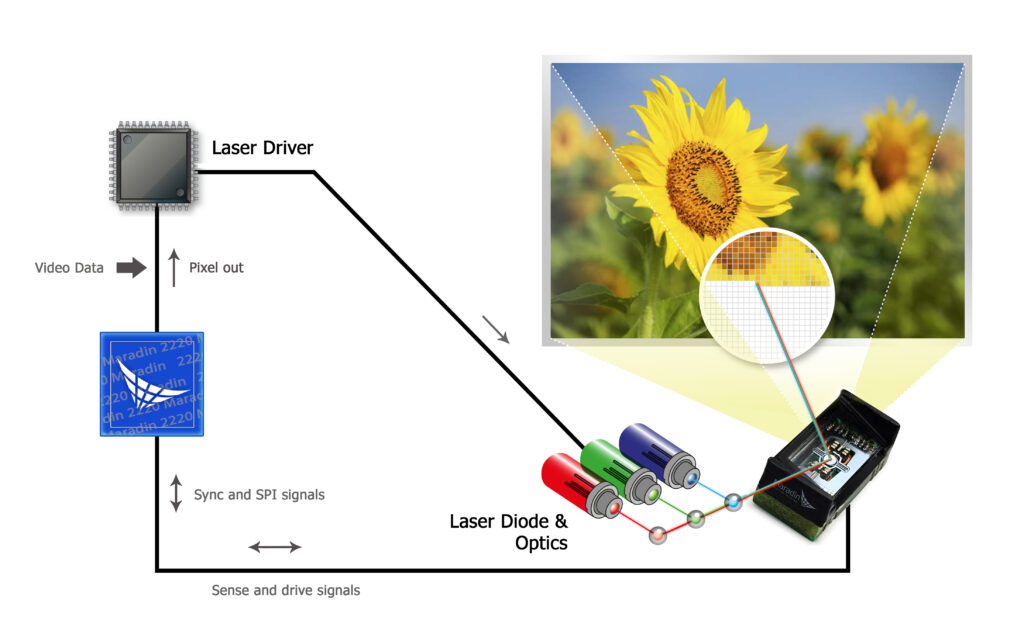

HOW THE LASER SCANNING PROJECTOR WORKS
Maradin uses 3 different lasers and combines them into a single RGB beam. The laser beam is projected by a MEMS mirror (the MAR1110) onto a surface upon which we would like to have the image (i.e., ground, window, dashboard, etc.).
The MAR1110 MEMS mirror is a dual-axis scanning mirror designed for miniature laser projectors and laser steering applications. It is based on industry-leading MEMS technology with ultra-precise actuation timing to achieve sub-pixel location accuracy. The MEMS actuators combine both a fast electro-static actuator and a powerful electromagnetic actuator, which provide maximum field of view, lowest power, and greatest immunity to environmental changes, like temperature, aging, and others.
The MAR1110 MEMS is controlled by an all-digital driver and controller, the world’s first directly programmable, fully digital MEMS controller with capabilities far outreaching current analog control solutions.
In addition to the MEMS, the controller also manages the data and lasers for a full Laser Based Scanning (LBS) display solution. It has multiple image sources (pattern generator, memory stored images, and FPD-Link III video interface) that, according to a modified pixel timing algorithm, generate a full color projection. The sophisticated pixel timing algorithm enables to overcome optical distortions, to change the size of the field of view and image brightness.
Flexibility and Customization
Flexibility
Maradin EVK can be modified for different operating specifications and needs.
Packaging
Maradin package can be fully adapted to the needs of different systems.
Connectivity
The DM5200 is a plug and play evaluation kit that works with your laser light source
DM5220 Evaluation kit Common Applications
MAR1100.E – MEMS SCANNING MIRROR SPEC:
| Item | Specification |
|---|---|
Optical angle (H x V) | Typ.: 45×20 Deg. | Max: 45×30 Deg. |
Resolution (HxV) | Typ.: 1280×480 pixels | Max: 1280×600 pixels |
Pixel position error | +/- 1/5 pixel |
Resonance frequency (H) | 10,750 Hz |
Resonance frequency (V) | 1800 Hz |
Effective mirror size (H) | 1 mm |
Effective mirror size (V) | 1.1 mm |
MEMS Scanning Module dimensions (L x W x H) | Typ.: 10×5.5×5 mm |
MEMS Scanning module power consumption | 70 mW (rms) |
Package | Typ.: Plastic, Non-Hermetic | Custom: Ceramic, Hermetic |
| Item | Specification |
|---|---|
Throw Ratio | 1.2 |
Incident angle (H) | 0 Deg. |
Incident angle (V) | 15 – 22 Deg. |
Mirror reflectance | Typ.: 90-98% (Aluminium coating)Max: 99.5% (High Reflective Coating) |
Overall reflectance | >85% (Mirror & Optical window) |
Wavelength range for reflection | Typ.: 440 -700 mmCustom: Any wavelength upon request |
laser max spot size | 0.7 mm |
